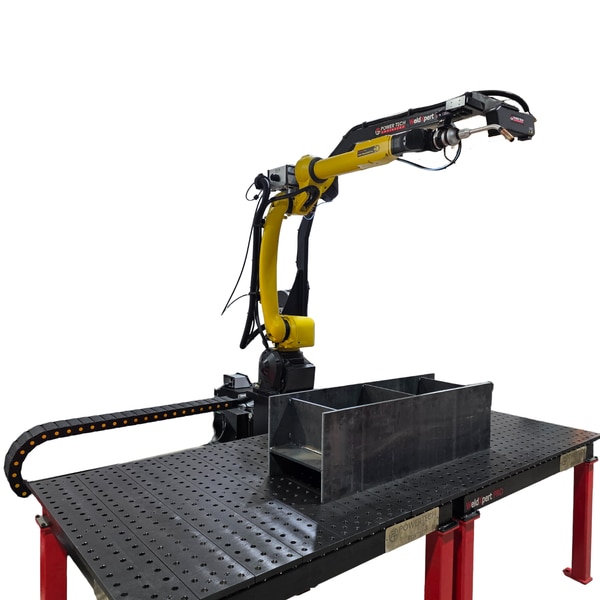

No Teaching. No Drawing. Just Welding Intelligent Robotic Welding Autonomy Engineered, integrated & commissioned by Powertech Engineers. WeldXpert Pro is a fully integrated industrial robotic welding solution engineered for precision, scalability, and high-duty continuous production. The platform delivers next-level scandriven path intelligence, torch posture autonomy, and multi-axis coordinated motion — eliminating manual robot teaching, part drawings, and conventional programming delays from production welding. With integrated 3D Laser Scanner accompanied with laser seam tracking, real-time deviation correction, offline digital-twin simulation, and an intelligent welding-technique database. *Perception, Digitization & Joint Definition - Laser/structured-light scanning captures live workpiece geometry, producing a high-density 3D point cloud of weld topology and joint contours. - Advanced algorithms reconstruct a true digital model from scanned data, classify joint types, and automatically determine weld-edge continuity even on irregular or deformed assemblies. - Proprietary path gen engines analyze geometry, predict torch accessibility, plan posture transitions, and auto-generate weld-optimized motion toolpaths. *Scalable Robot Mounting & External Axis Ecosystem Powertech Engineers deploys robots in flexible industrial mounting formats to match weld envelope and accessibility: - 6-Axis Fixed Base, 7-Axis Floor Rail, Cantilever Linear Mount (7/8/9-Axis), Robot + 2-Axis Rotate-Tilt Positioner: - Max Cell Configuration: Robot + 3 gantry Axis + 2 rotate-tilt Axis

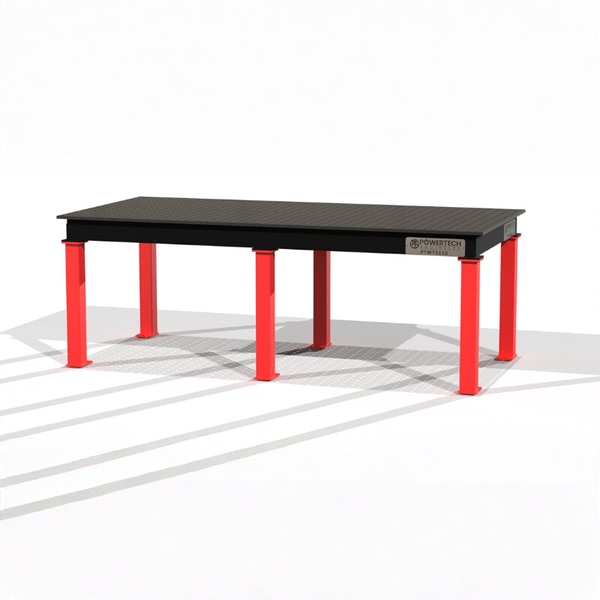

2D Modular Welding Tables For Heavy Duty Applications Specifications : - Size: 2100 mm x 1000 mm - 50 x 50 mm Grid Throughout Table - Plate Thickness: 16 mm - Table Height: 750 mm - Clamping Bore Diameter: 16 mm - Plate Material: IS 2062 Steel - Surface Treatment: Gas Nitriding (0.2mm Case Hardening) - Reinforced frame with load bearing capacity of up to 800 kg/mt. - Surface Flatness: ±0.5 mm/meter Key Features : - Load Bearing Anchoring System : For secure attachment to the floor of production facility to protect against tension, pressure and movement (for robot use). - Surface Teatment : Reduces welding spatter to stick to the surface of table. - More Freedom for Your Work : If the component is larger, the worktop of table can be easily extended with additional plates. We currently offer Welding Tables in Sizes 1200 × 1100 mm & 2100 × 1000 mm, engineered for precision and durability. Additionally, We provide customized table dimensions and configurations tailored to meet specific application requirements and workspace layouts. Contact us on ask@powertecheng.in or Call us or Whatsapp on +91 87993 75195 for details.

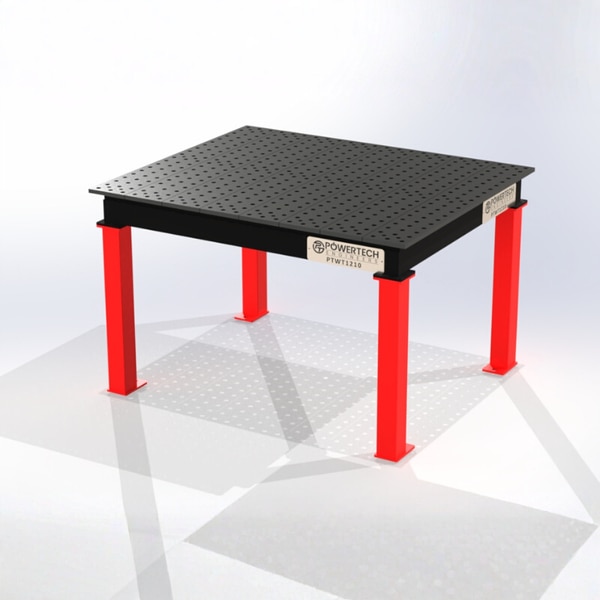

2D Modular Welding Tables For Simple and Medium Duty Applications Specifications : - Size: 1200 mm x 1000 mm - 50 x 50 mm Grid Throughout Table - Plate Thickness: 16 mm - Table Height: 750 mm - Clamping Bore Diameter: 16 mm - Plate Material: IS 2062 Steel - Surface Treatment: Gas Nitriding (0.2mm Case Hardening) - Reinforced frame with load bearing capacity of up to 800 kg/mt. - Surface Flatness: ±0.5 mm/meter Key Features : - Load Bearing Anchoring System : For secure attachment to the floor of production facility to protect against tension, pressure and movement (for robot use). - Surface Teatment : Reduces welding spatter to stick to the surface of table. We currently offer Welding Tables in Sizes 1200 × 1100 mm & 2100 × 1000 mm, engineered for precision and durability. Additionally, We provide customized table dimensions and configurations tailored to meet specific application requirements and workspace layouts. Contact us on ask@powertecheng.in or Call us or Whatsapp on +91 87993 75195 for details.
