2D Modular Welding Tables
Description

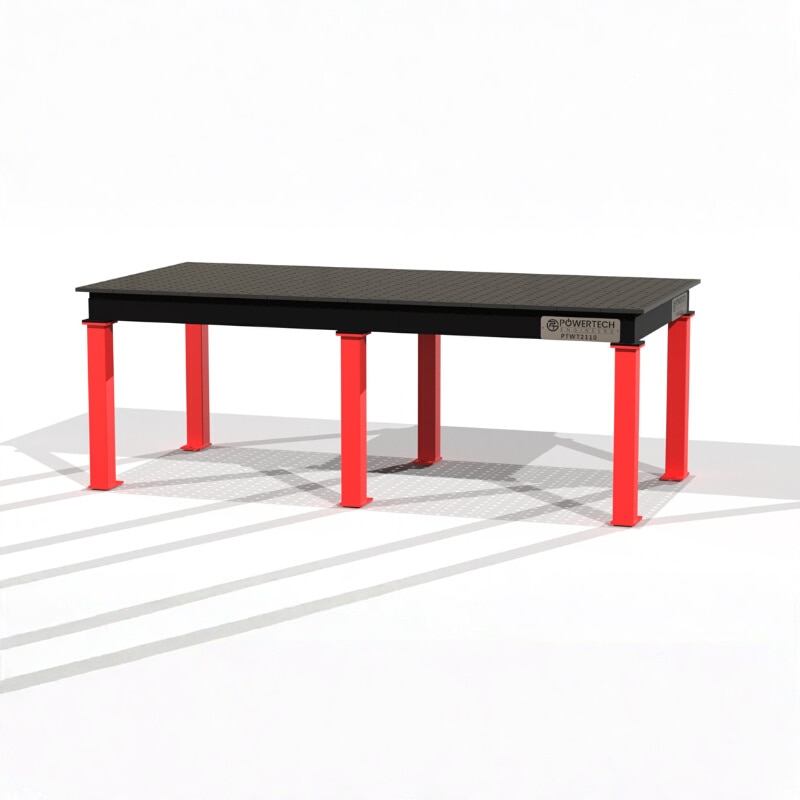

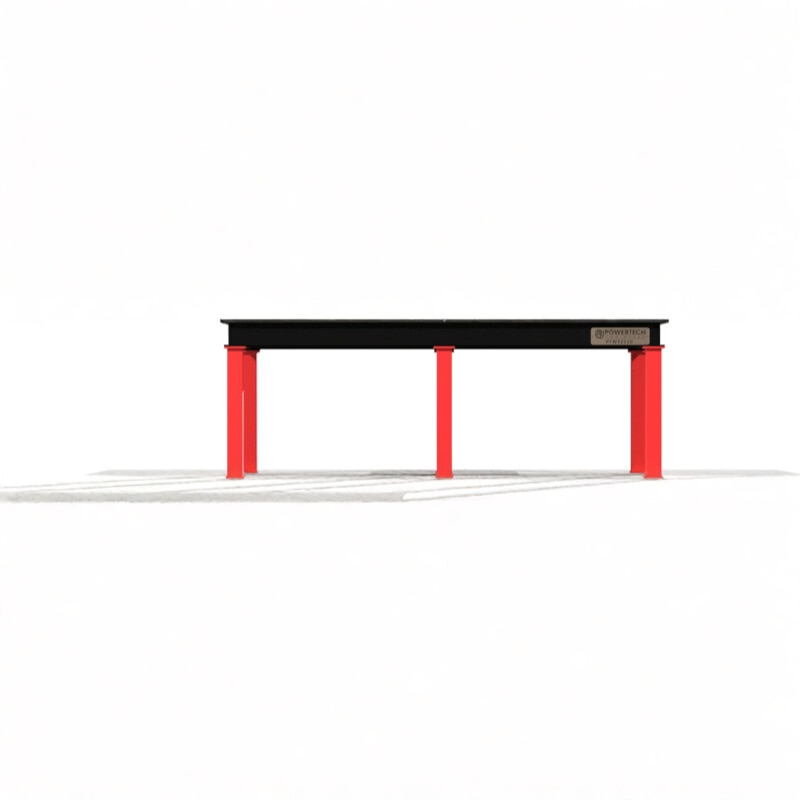

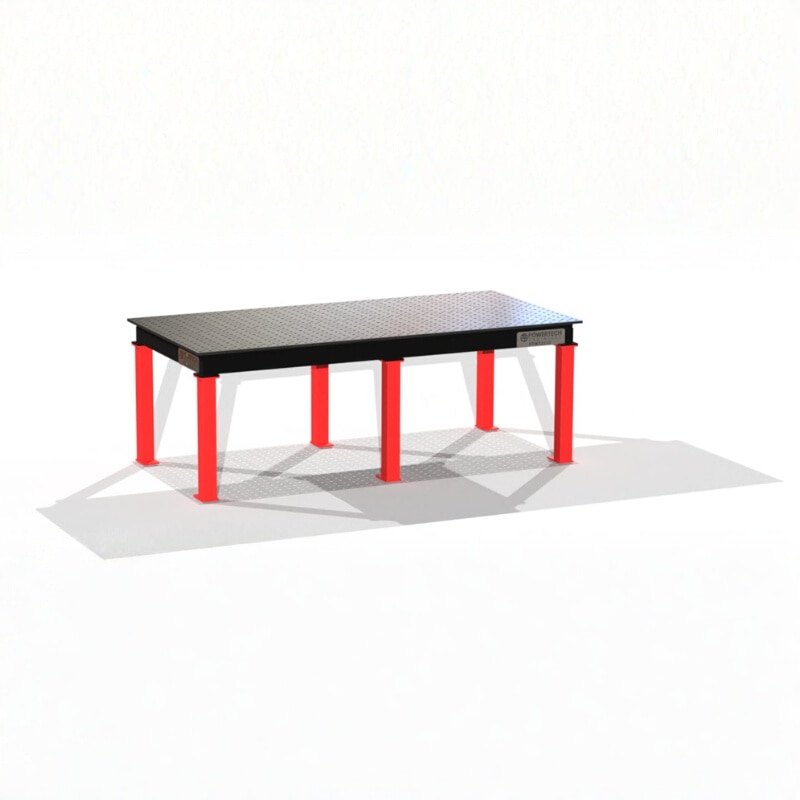

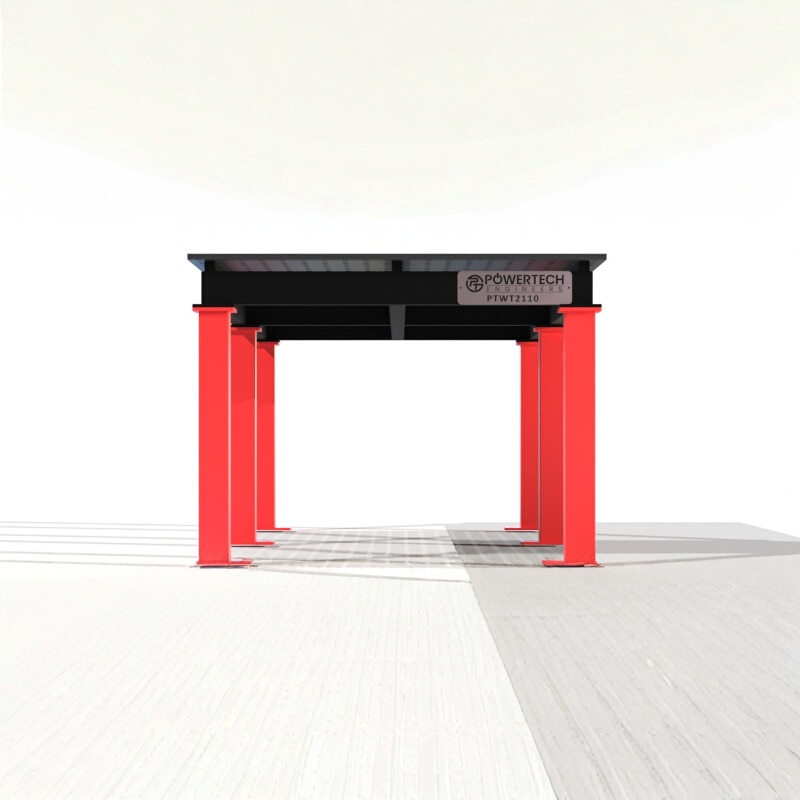

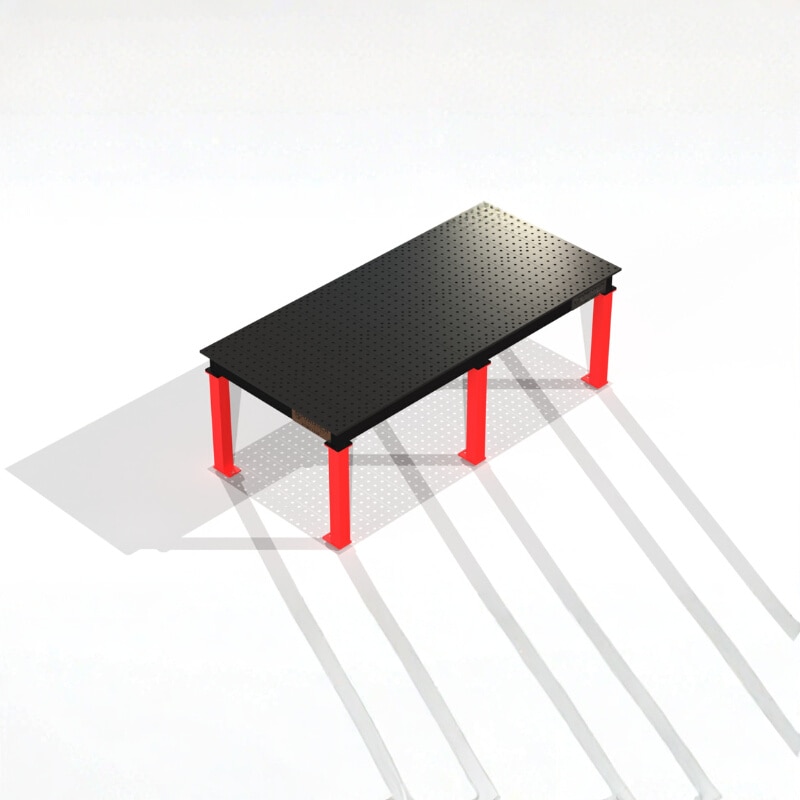

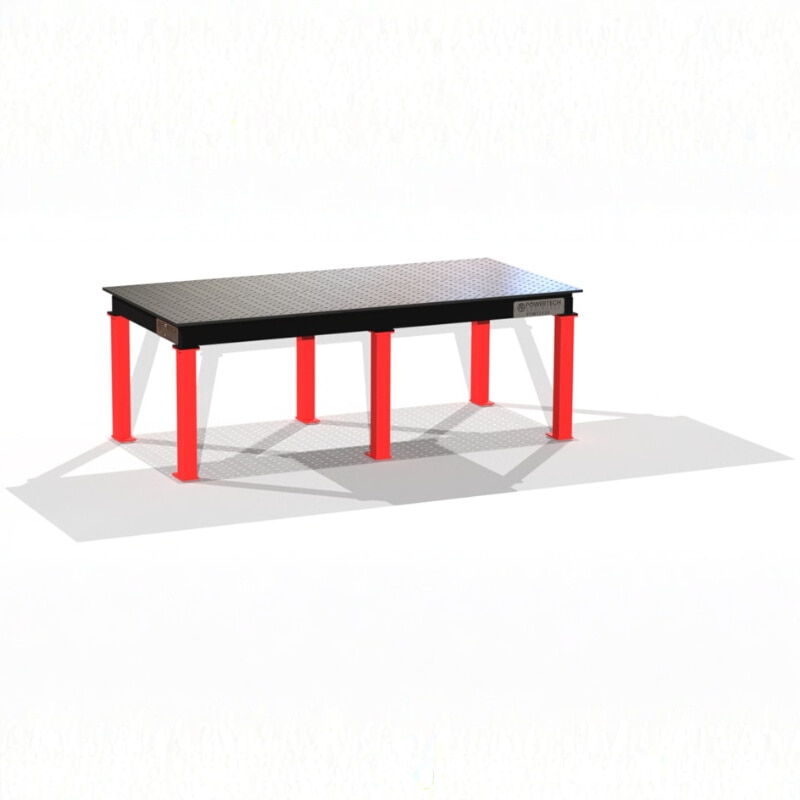

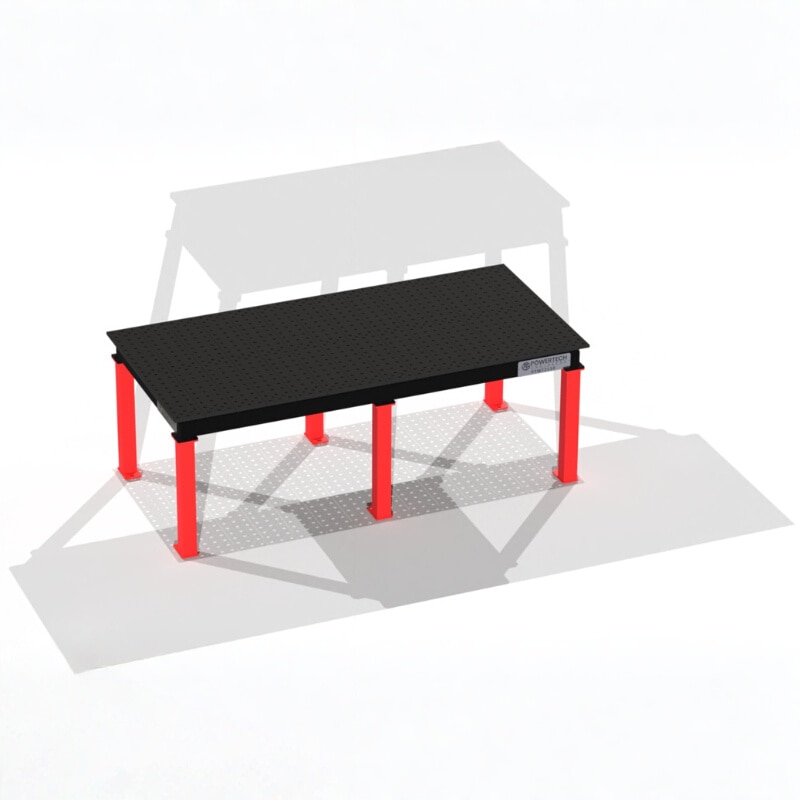

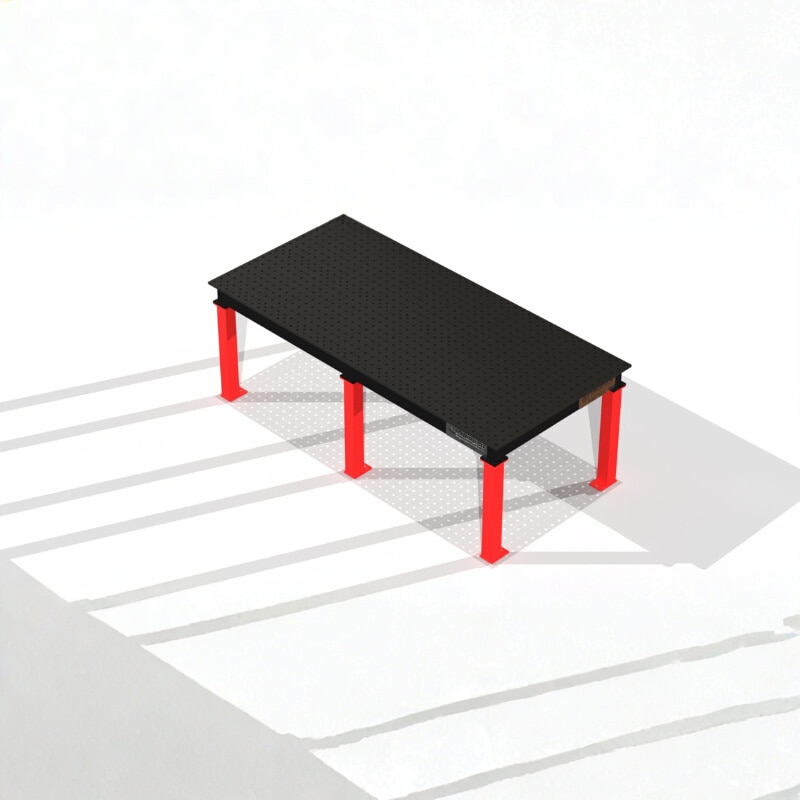

2D Modular Welding Tables
For Heavy Duty Applications
Specifications :
- Size: 2100 mm x 1000 mm

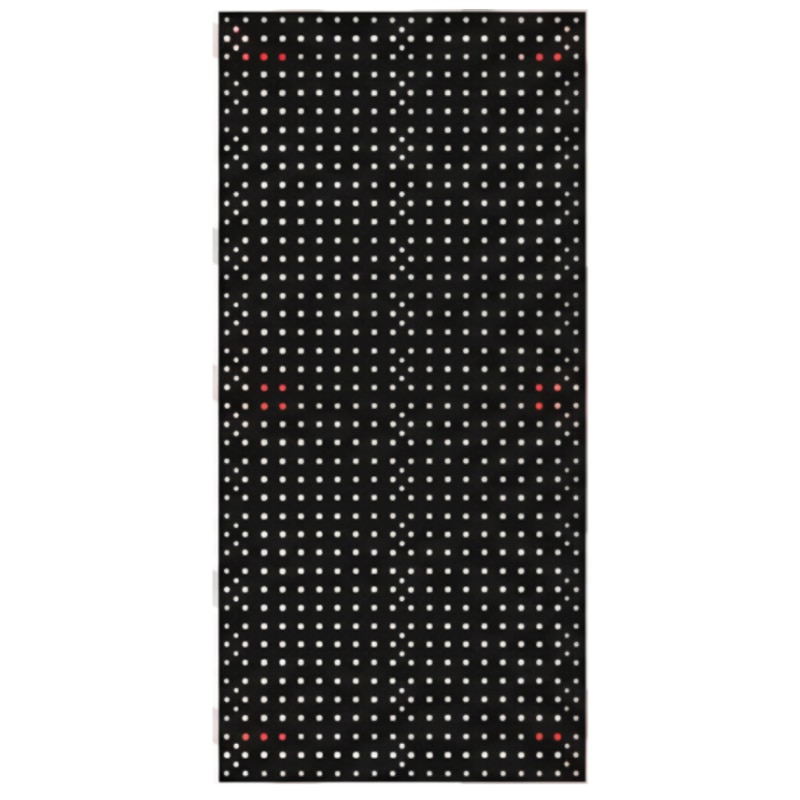

- 50 x 50 mm Grid Throughout Table
- Plate Thickness: 16 mm
- Table Height: 750 mm
- Clamping Bore Diameter: 16 mm
- Plate Material: IS 2062 Steel
- Surface Treatment: Gas Nitriding (0.2mm Case Hardening)
- Reinforced frame with load bearing capacity of up to 800 kg/mt.
- Surface Flatness: ±0.5 mm/meter
Key Features :
- Load Bearing Anchoring System : For secure attachment to the floor of production facility to protect against tension, pressure and movement (for robot use).
- Surface Teatment : Reduces welding spatter to stick to the surface of table.
- More Freedom for Your Work : If the component is larger, the worktop of table can be easily extended with additional plates.
We currently offer Welding Tables in Sizes 1200 × 1100 mm & 2100 × 1000 mm, engineered for precision and durability.
Additionally, We provide customized table dimensions and configurations tailored to meet specific application requirements and workspace layouts.
Contact us on ask@powertecheng.in or Call us or Whatsapp on +91 87993 75195 for details.
